Services

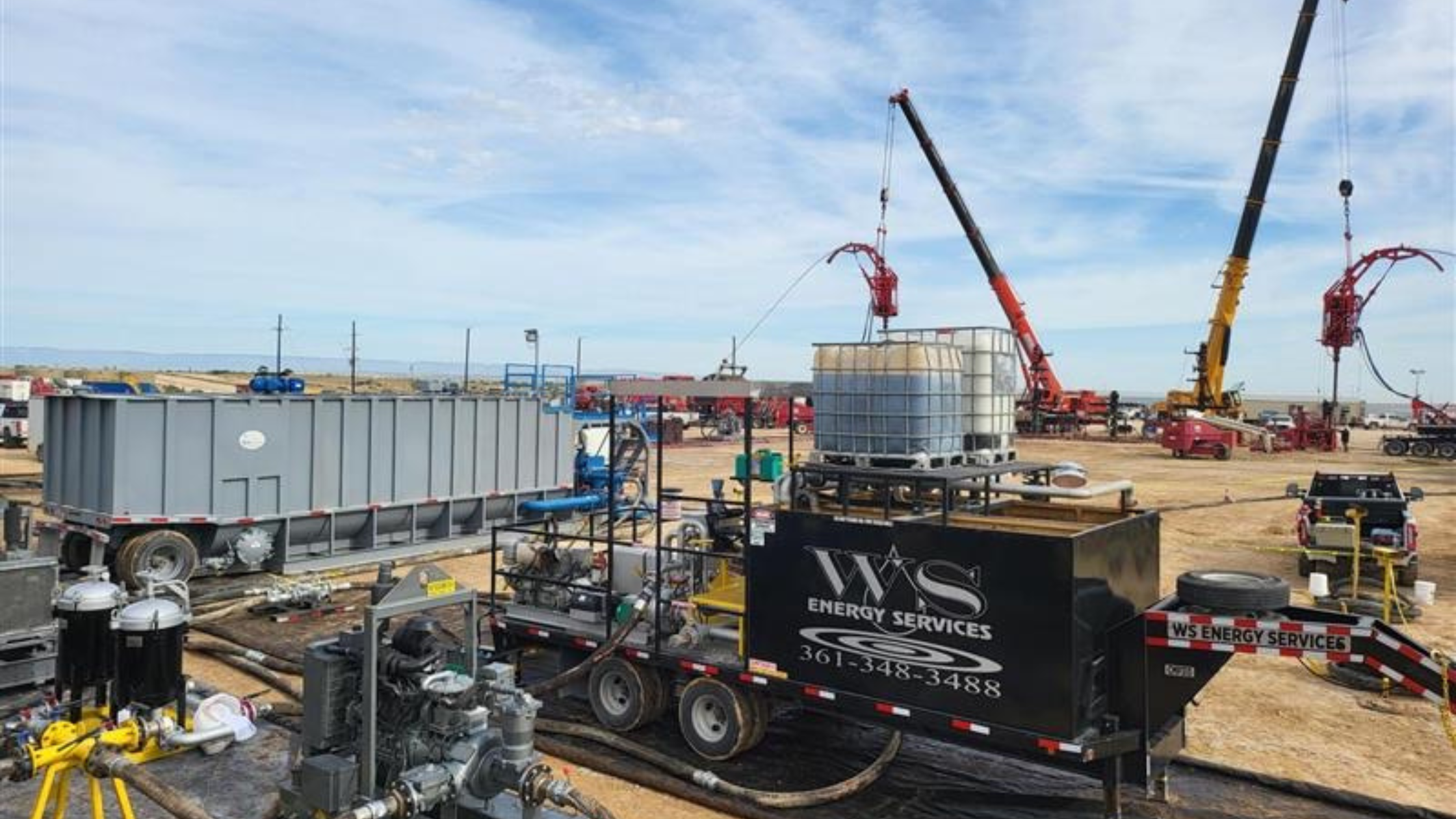

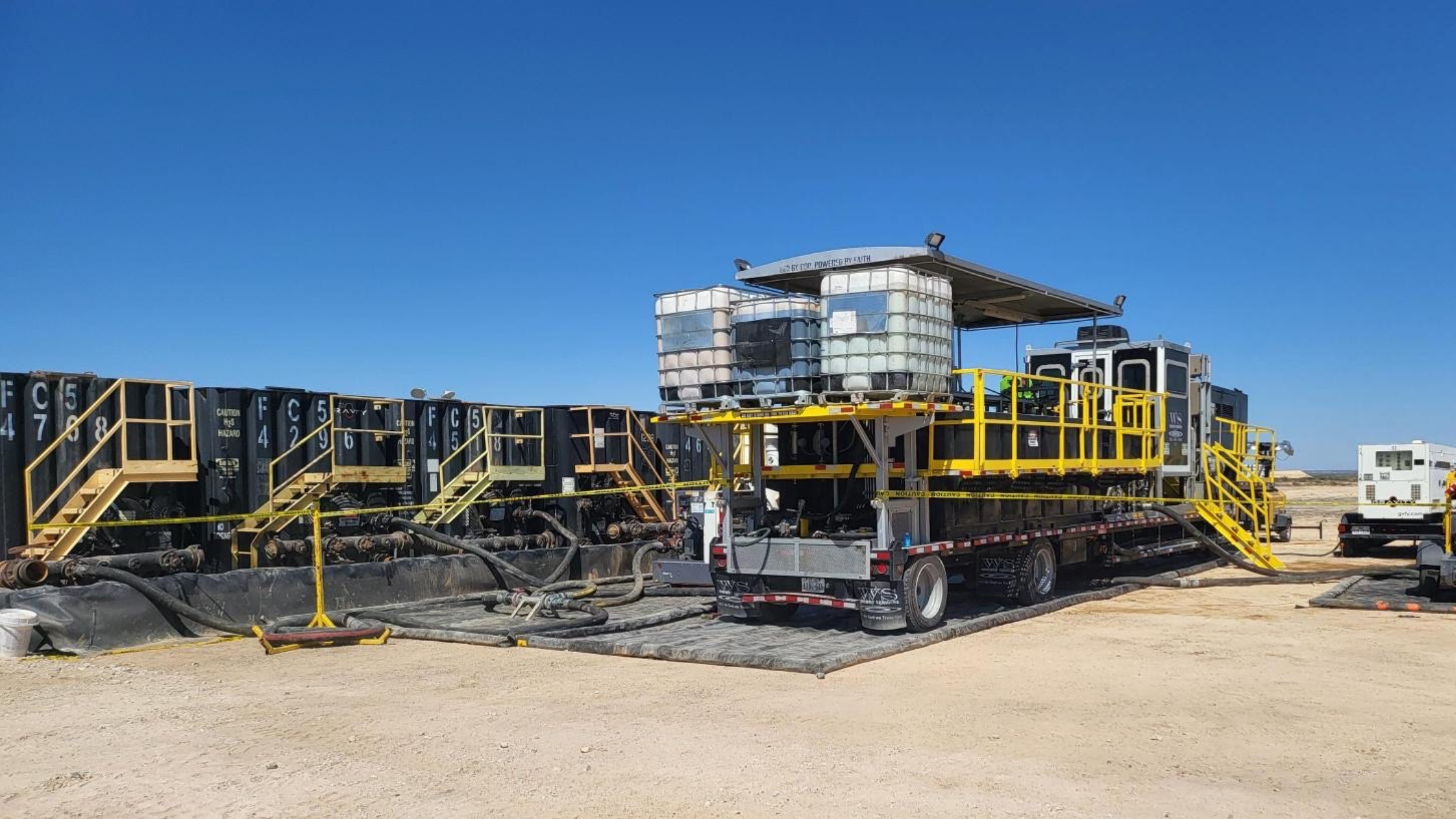

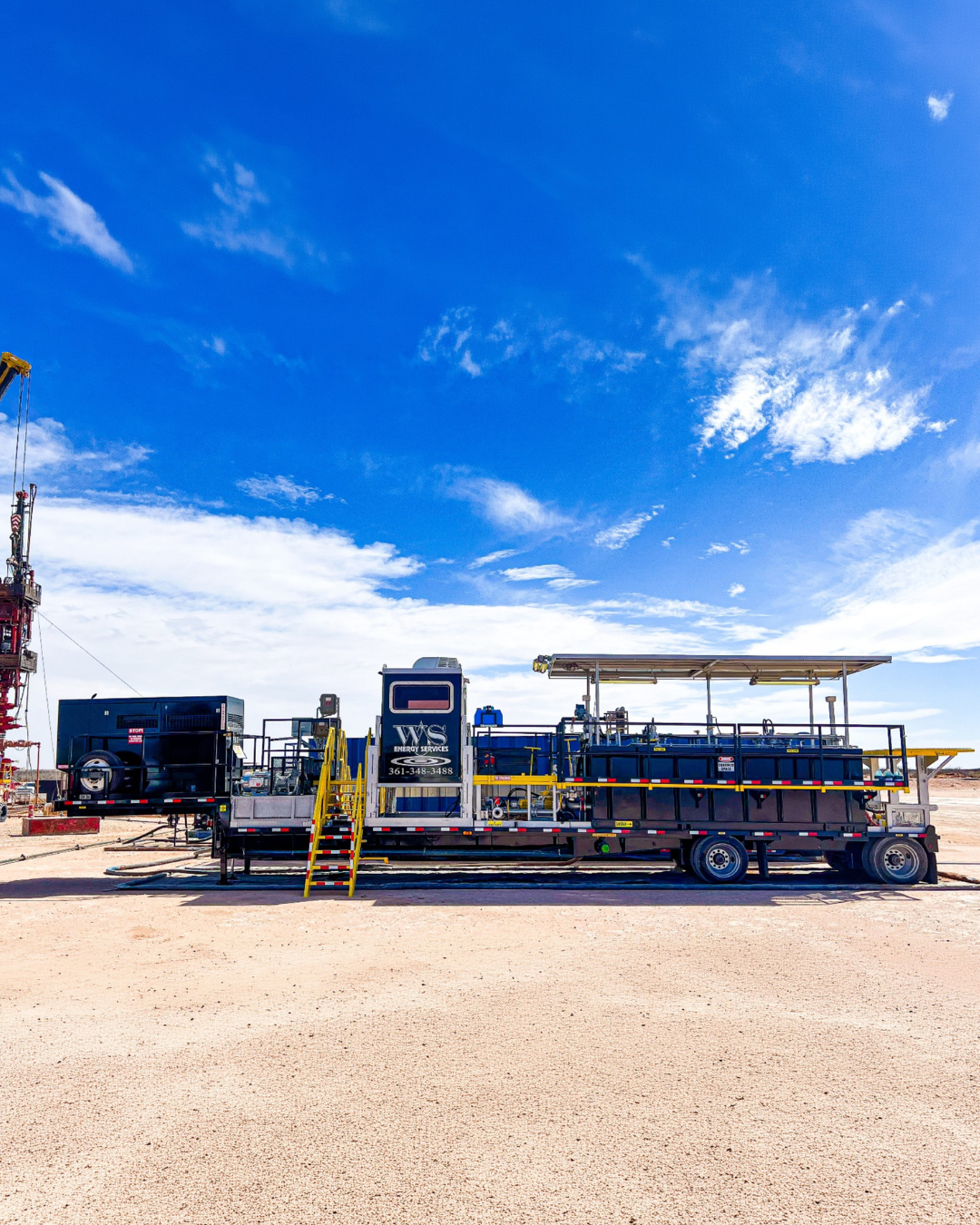

Chemical Mixing Plants

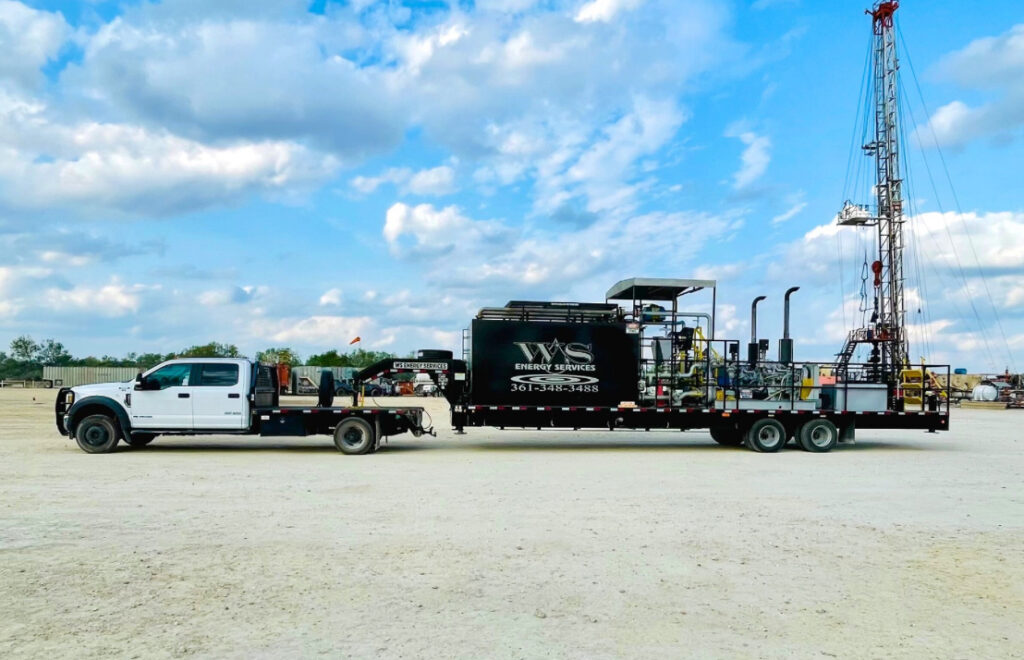

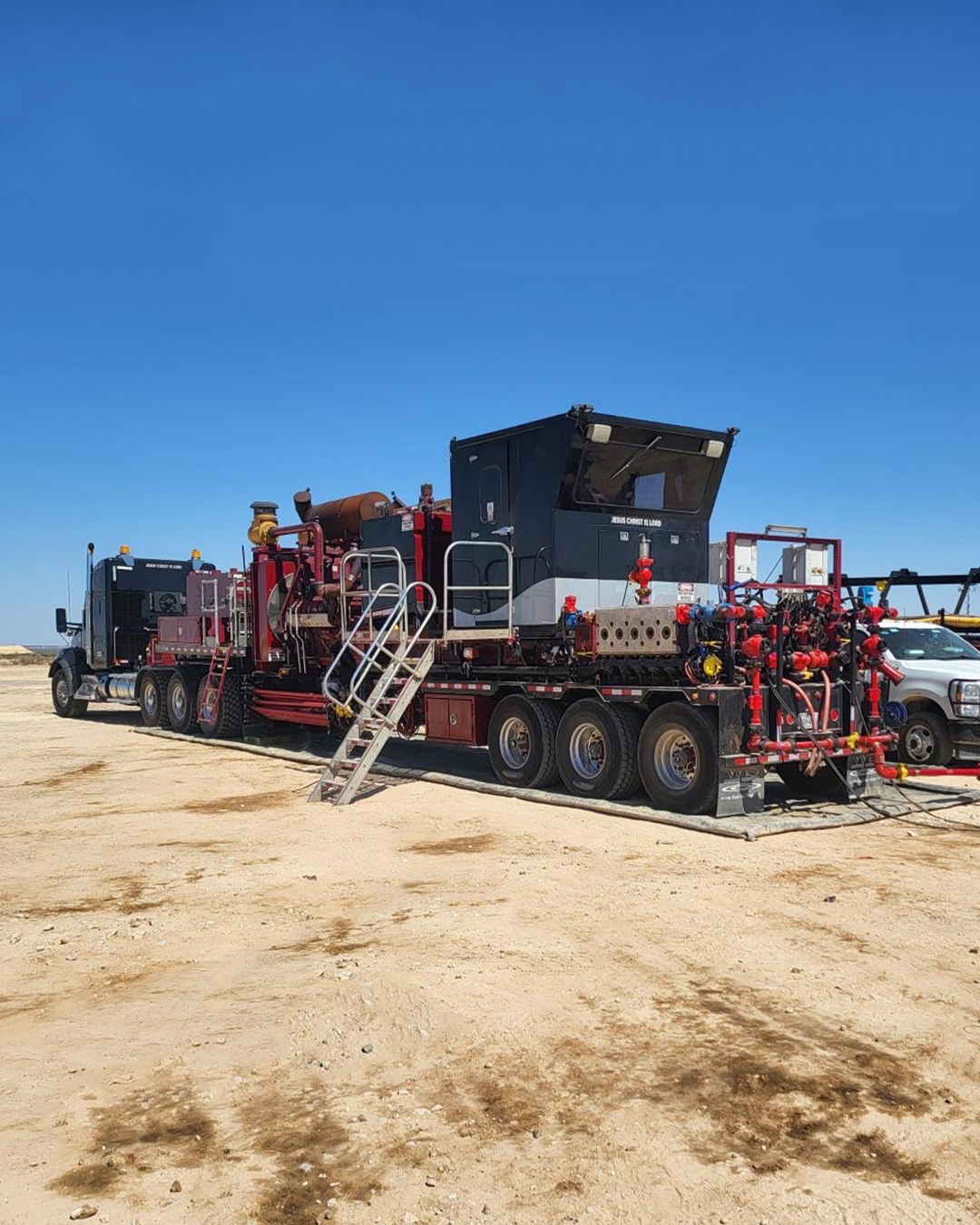

Our team operates a fleet of over 20 custom-designed Chemical Mixing Plants engineered for reliable, high-performance operations in the field.

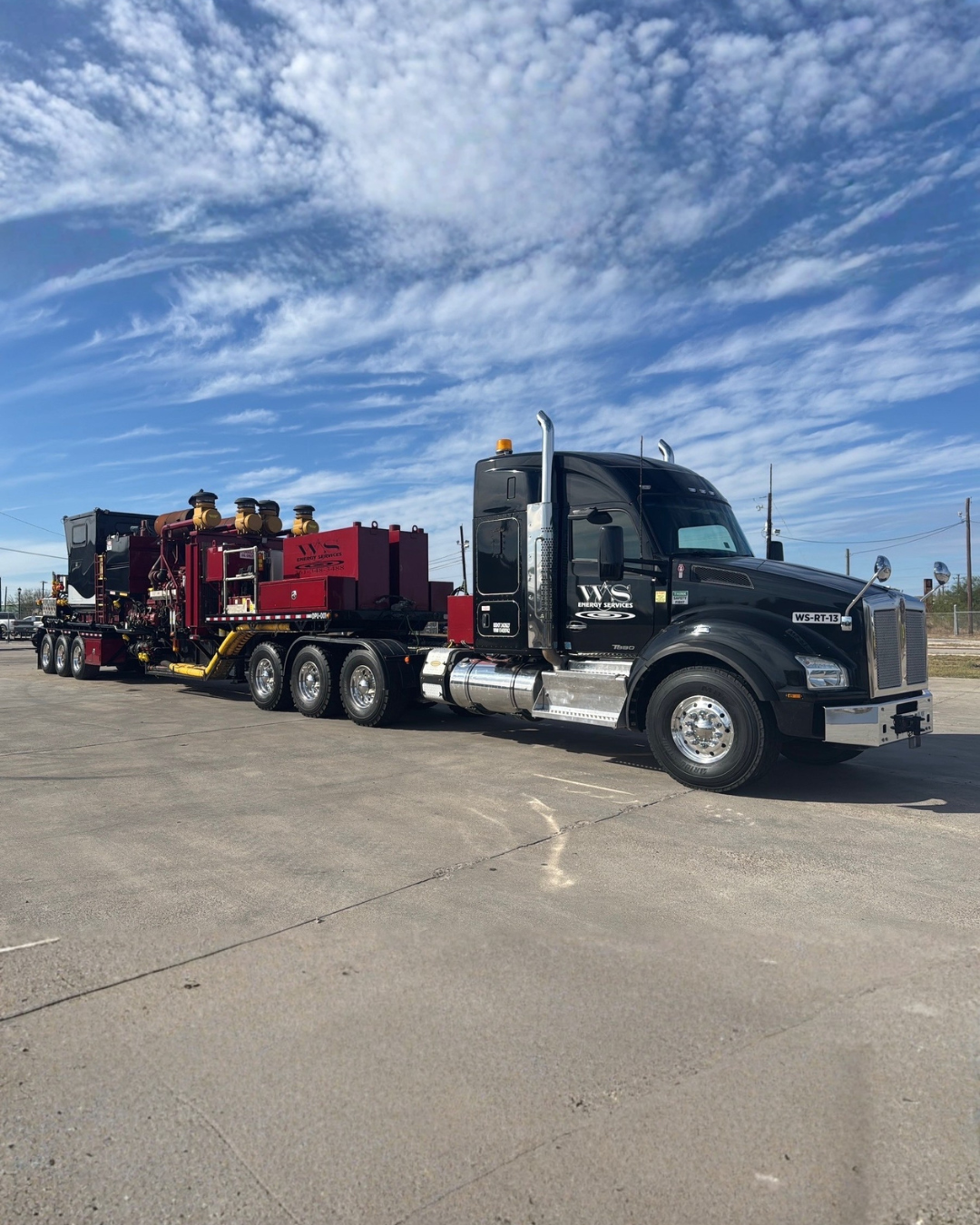

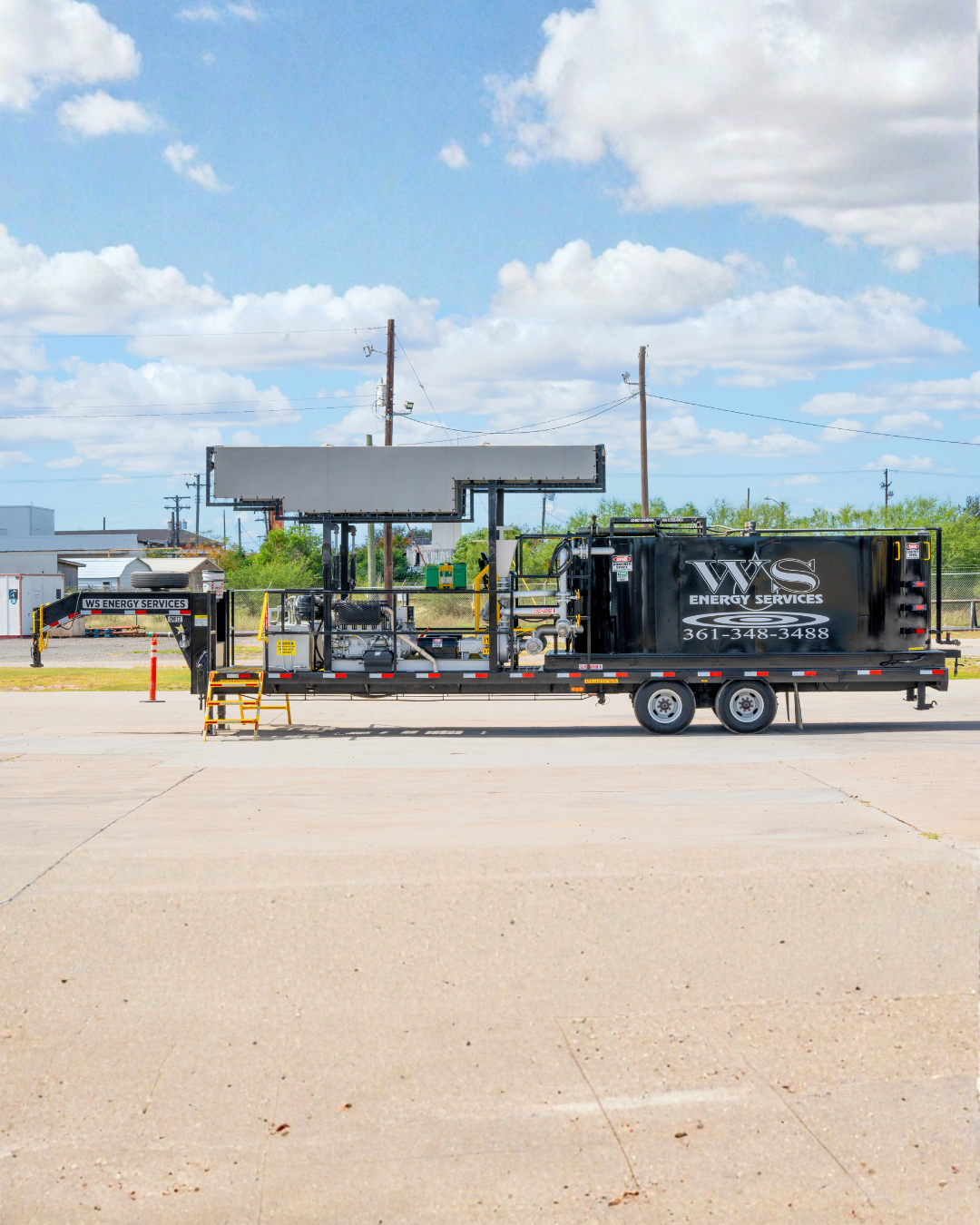

Our fleet includes trailer-mounted dual-tank mixing units equipped with redundant engine systems for enhanced reliability, as well as 18-wheeler triple-tank units featuring integrated onboard data systems for advanced monitoring and performance tracking.

Fleet Capabilities

  • 12 dual-engine, dual-tank mixing units
  • 4 triple-tank, dual-engine mixing units
  • 7 single-engine, dual-tank compact footprint units
  • Chemical data compatibility across the entire fleet


Most units are equipped with a 50 BBL active tank, a 30 BBL sweep tank, and hydraulic blenders to ensure efficient, consistent mixing. Whether supporting coil tubing, workover, or production operations, WS Energy Services delivers dependable equipment backed by experienced personnel committed to keeping your operation running safely and efficiently.

Aphron Mud System

Our Aphron Mud System leverages a true 4.0 lb Xanthan gum viscosifier to maintain consistent viscosity and support effective hole cleaning. Our formulation integrates specialized surfactants to reduce fluid density, stabilize aphron bubble formation, and mitigate oil contamination.

We provide live well-parameter readings through our Mud Data System and hourly crew checks, giving customers and onsite representatives the fluid data needed to make informed adjustments as well conditions evolve.

The system can achieve weights as low as 4.5 lbs, with a typical operational range of 5.5–7.2 lbs. All WS Energy Services mixing plants are equipped for Aphron operations, enabling a smooth transition from slickwater to Aphron fluid systems, “Apron on-the-fly,” as well conditions evolve.

Chemical Data Systems

Our Chemical Data Systems provide continuous monitoring and automated chemical control to help customers maximize treatment performance while improving efficiency in the field.

Operators can monitor flow rates, pressures, and chemical injection in real time through a browser-based platform that integrates seamlessly with our mixing plants. Intelligent software automatically adjusts chemical injection rates as operating conditions change, ensuring accurate treatment throughout every phase of the operation.

By combining advanced automation with real-time reporting, our Chemical Data Systems reduce manual adjustments, improve treatment consistency, and provide customers with complete confidence in every job.

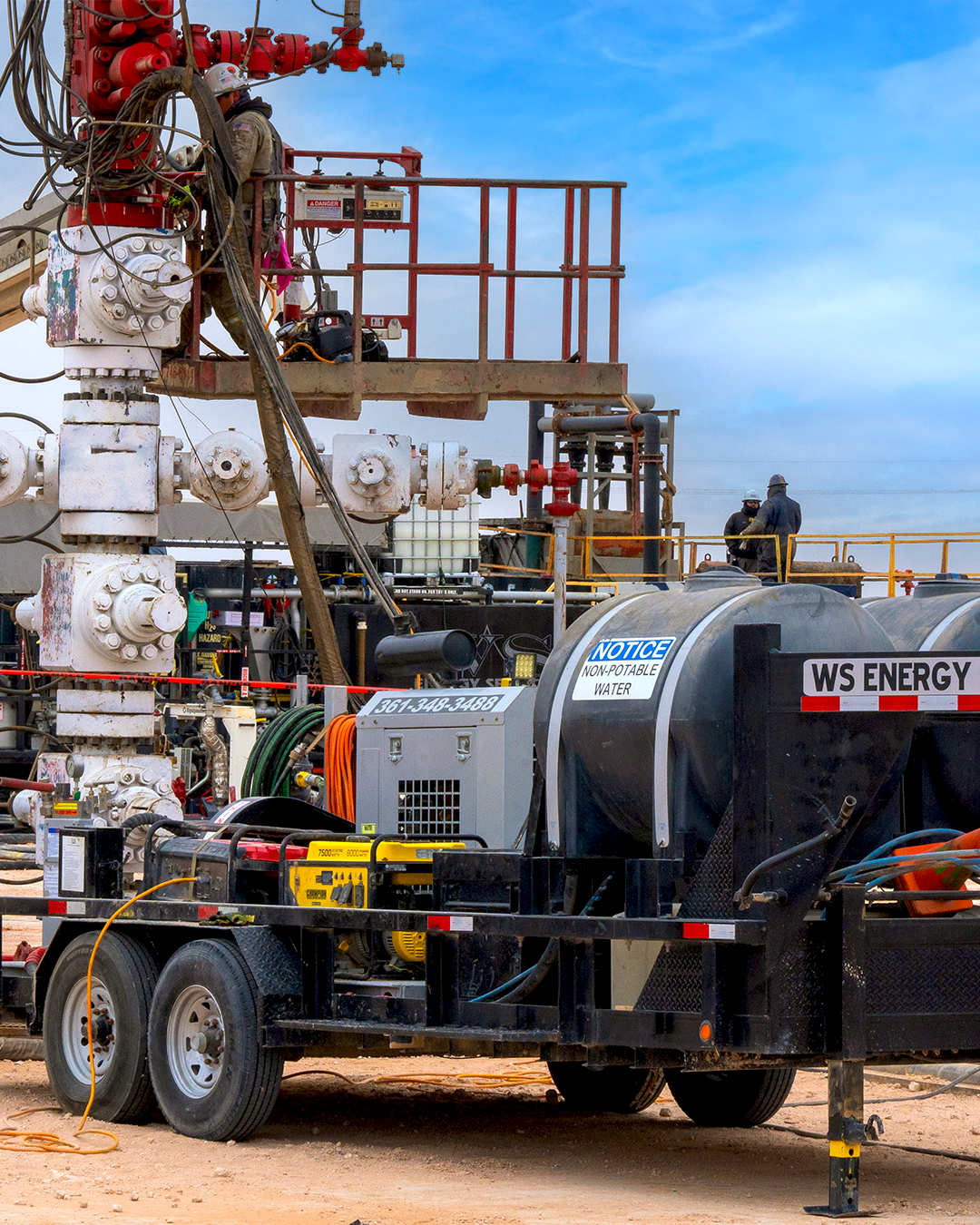

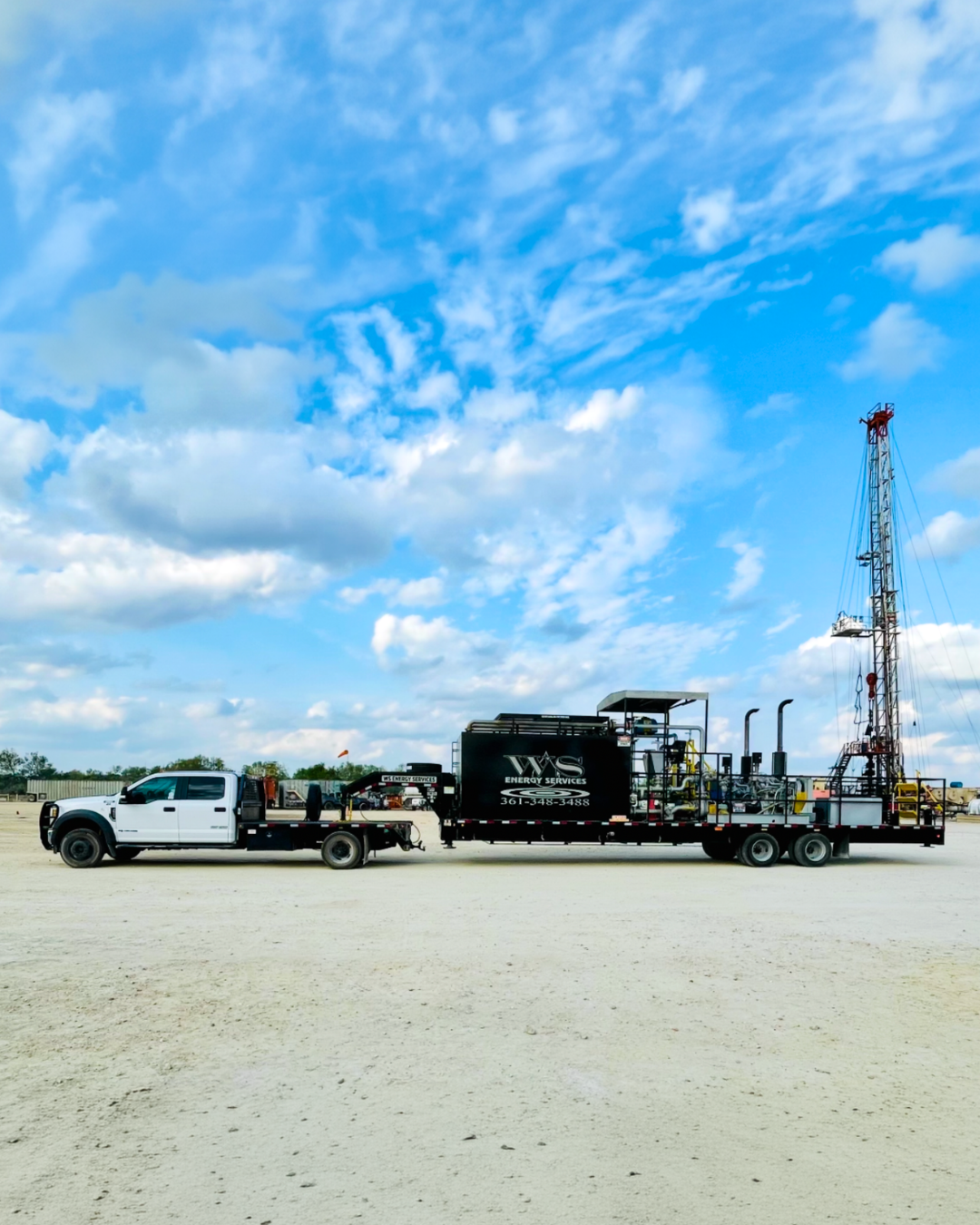

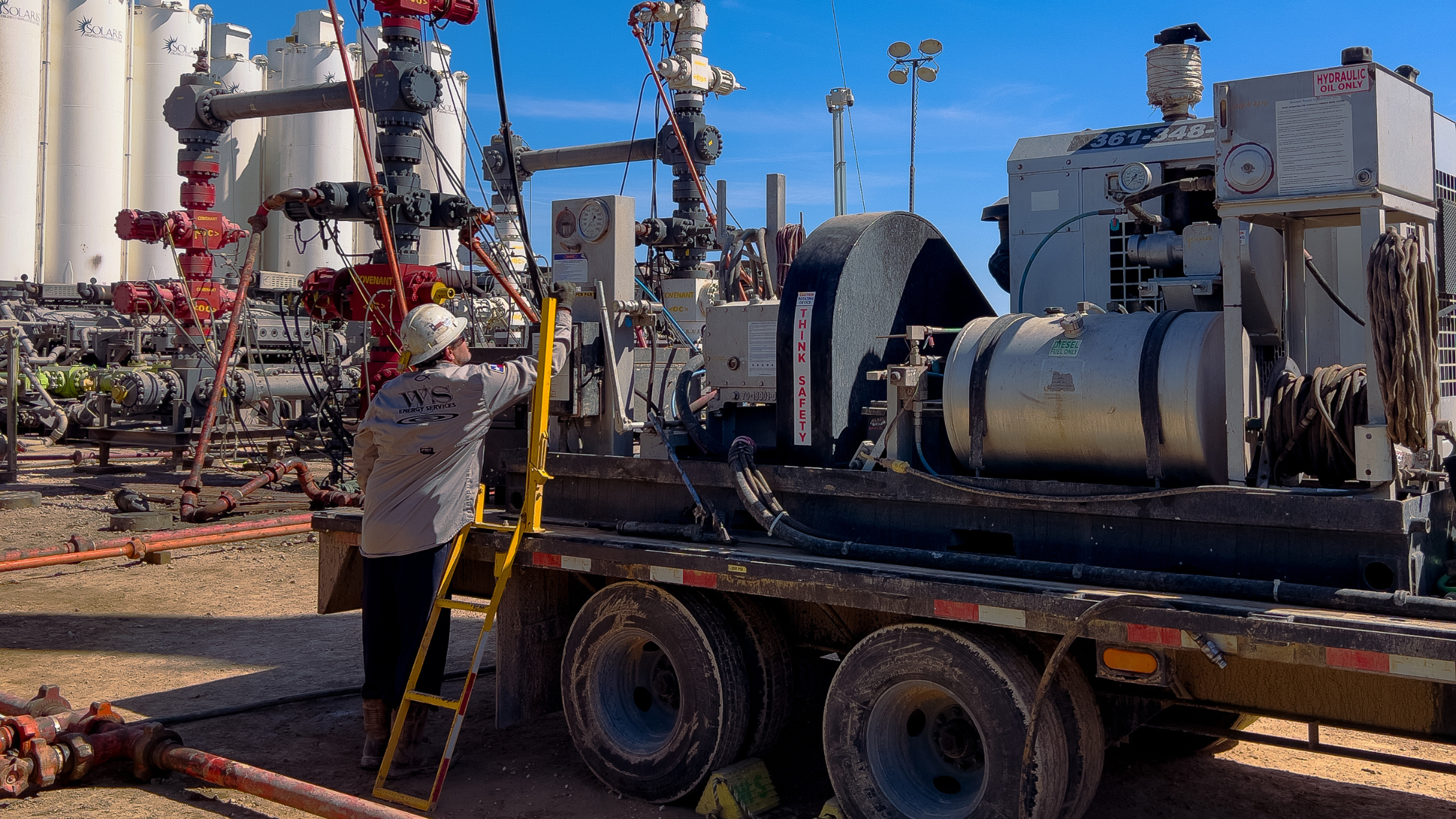

Torque & TEst

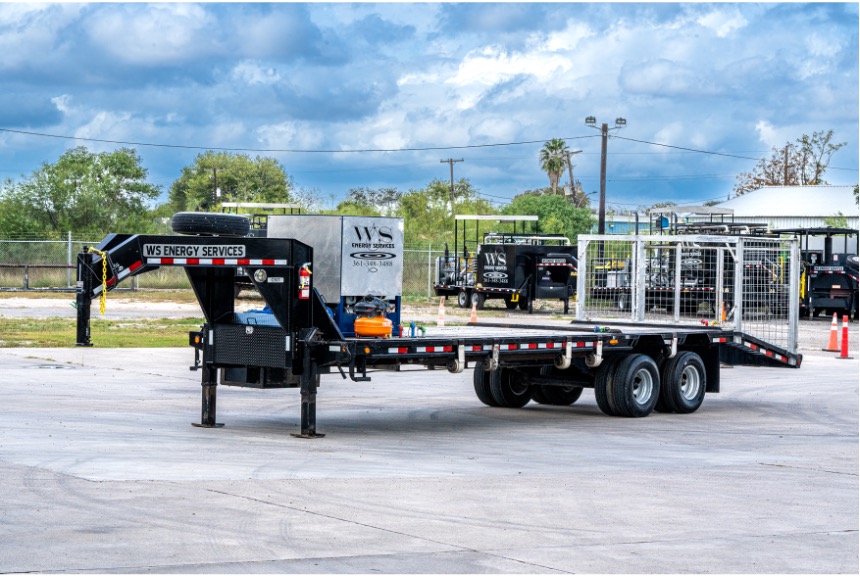

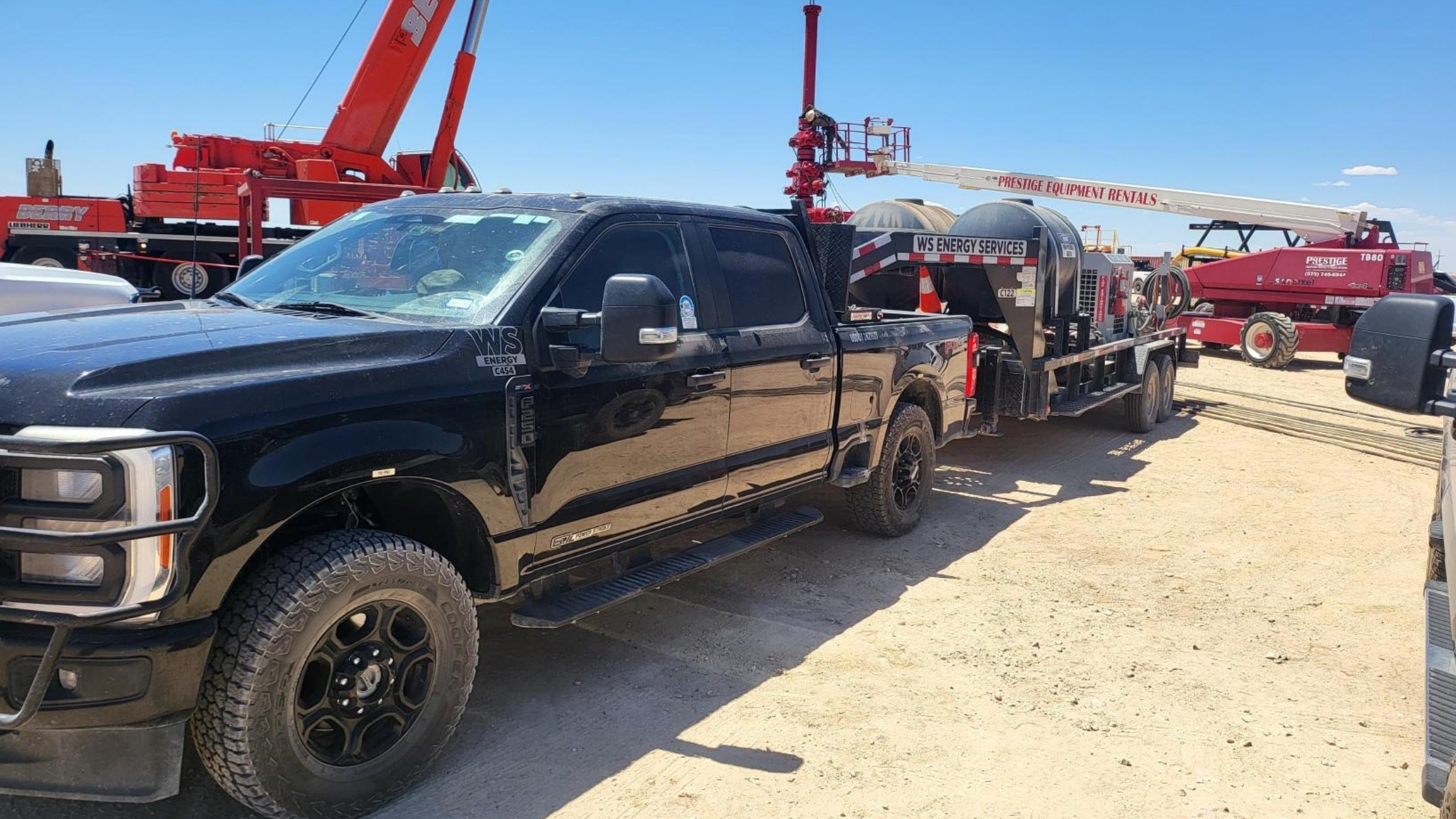

Our fleet of more than 30 trailer-mounted Hydrostatic Test Units delivers safe, reliable pressure testing for a wide range of wellsite applications. Available in 15K PSI configurations with flow rates from ¼ to 1 BBL per minute, our units are designed to provide accurate, dependable performance in the field.

Each unit undergoes routine certifications, inspections, and preventative maintenance and is equipped with multi-port manifolds for maximum operational flexibility. Digital pressure and rate recording, valve greasing, data acquisition, and additional wellhead tooling are available to meet the specific requirements of every job.


Equipment Features:
• 15K PSI valve greasing unit
• Dry rods, two-way checks backpressure valves, and wellhead          tools
• Hangers and test plugs
• Pressure-balanced, manually operated lubricator
• Digital data acquisition (pressure, flow rate, torque) with
  post-job reporting
• 15K PSI test pumps (16-40 GPM)
• 100 – 200 HP diesel engine
• Dual 250 gallon water tanks
• Onboard 10K PSI hydraulic wrenches with 125 ft. hoses
• 15K PSI pressure regulator
• 20K PSI chart recorder
• 15K PSI Murphy trip gauge
• Fuel and air e-kill

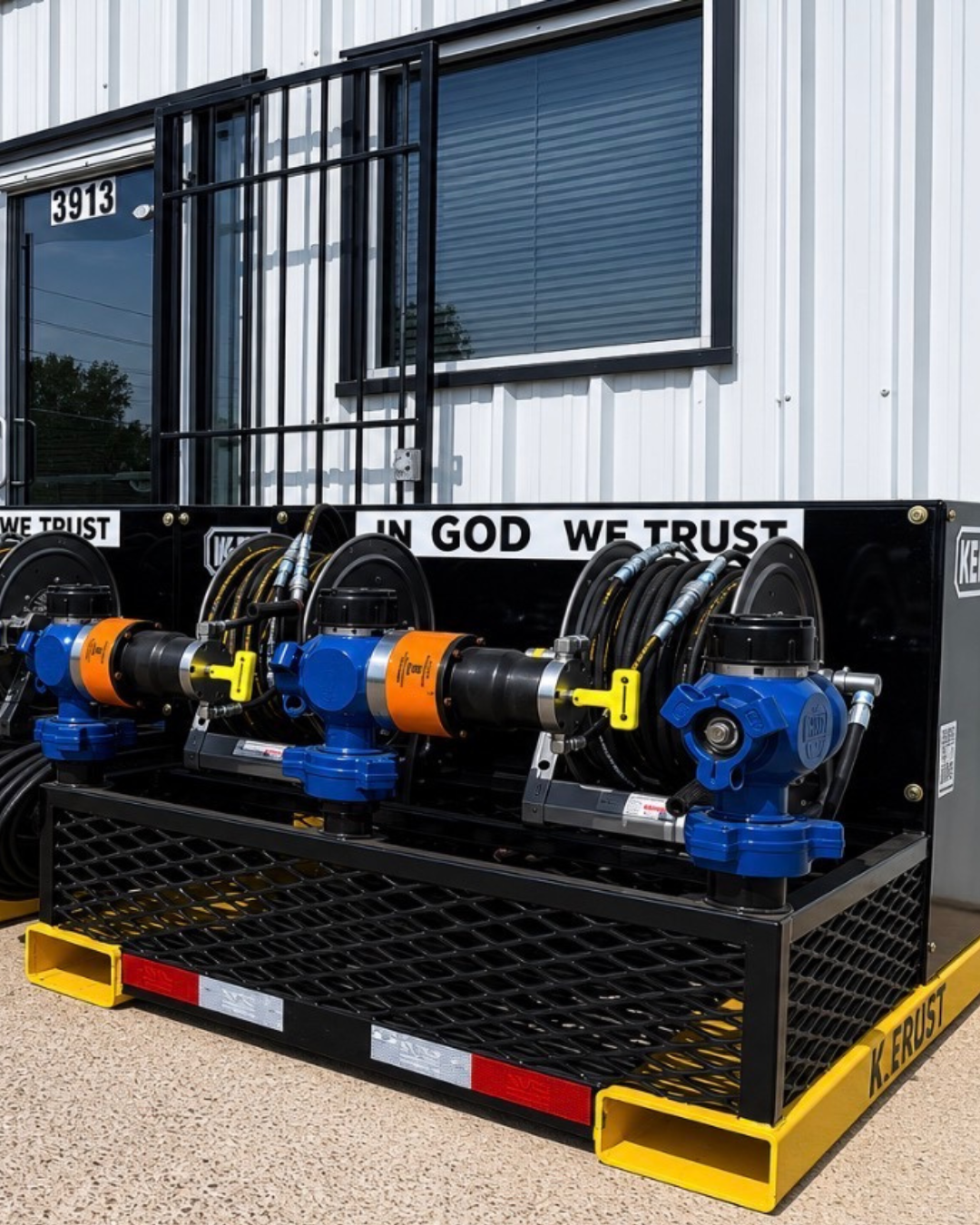

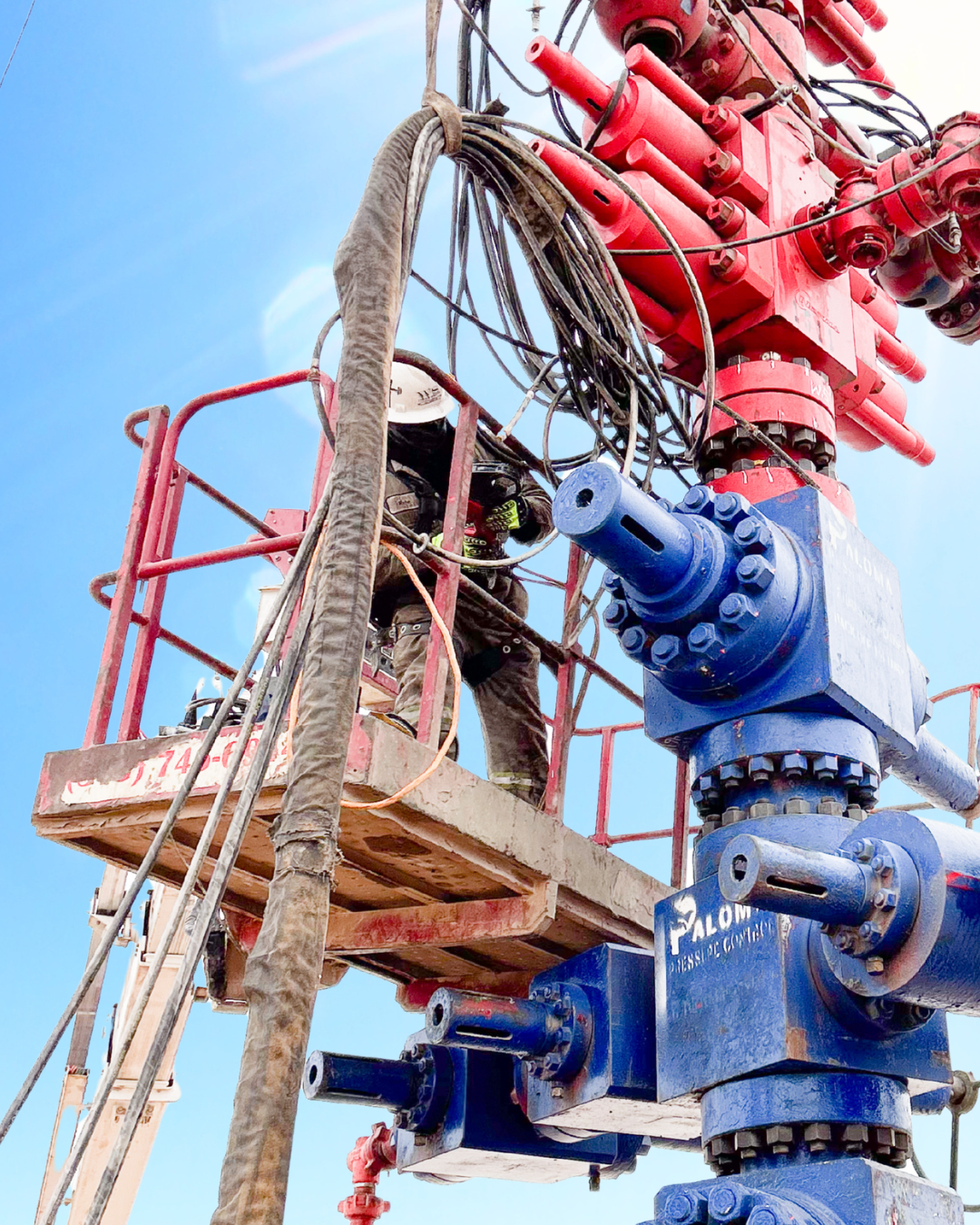

Hydraulic Wrenching Systems

Our Hydraulic Wrenching Systems combine exceptional performance with advanced safety features to deliver reliable wellhead operations in the most demanding environments. An exclusive Safety Isolation Barrier helps isolate potential spark emissions from the wellhead, significantly reducing the risk of flash fires while meeting certification requirements for Class I, Division 1, Groups A–F hazardous locations.

Designed for efficiency and precision, our hydraulic wrenching systems provide consistent, high-output torque while minimizing manual equipment handling at the wellsite. Integrated directly into our fleet, these systems improve operational efficiency, reduce downtime, and help crews complete critical wellhead operations safely and accurately. Supported by experienced personnel and a proactive maintenance program, every unit is prepared to deliver dependable performance when it matters most.

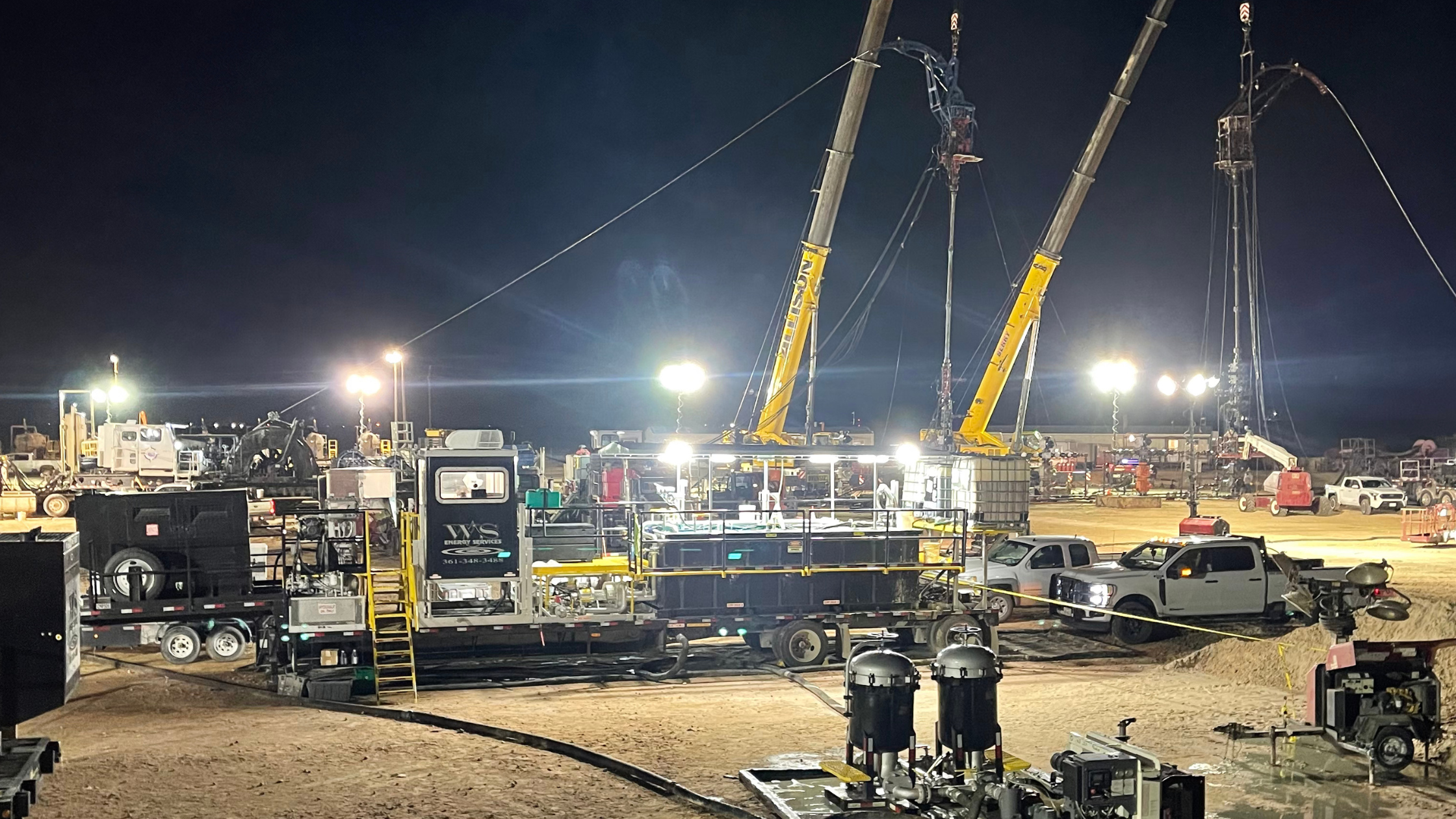

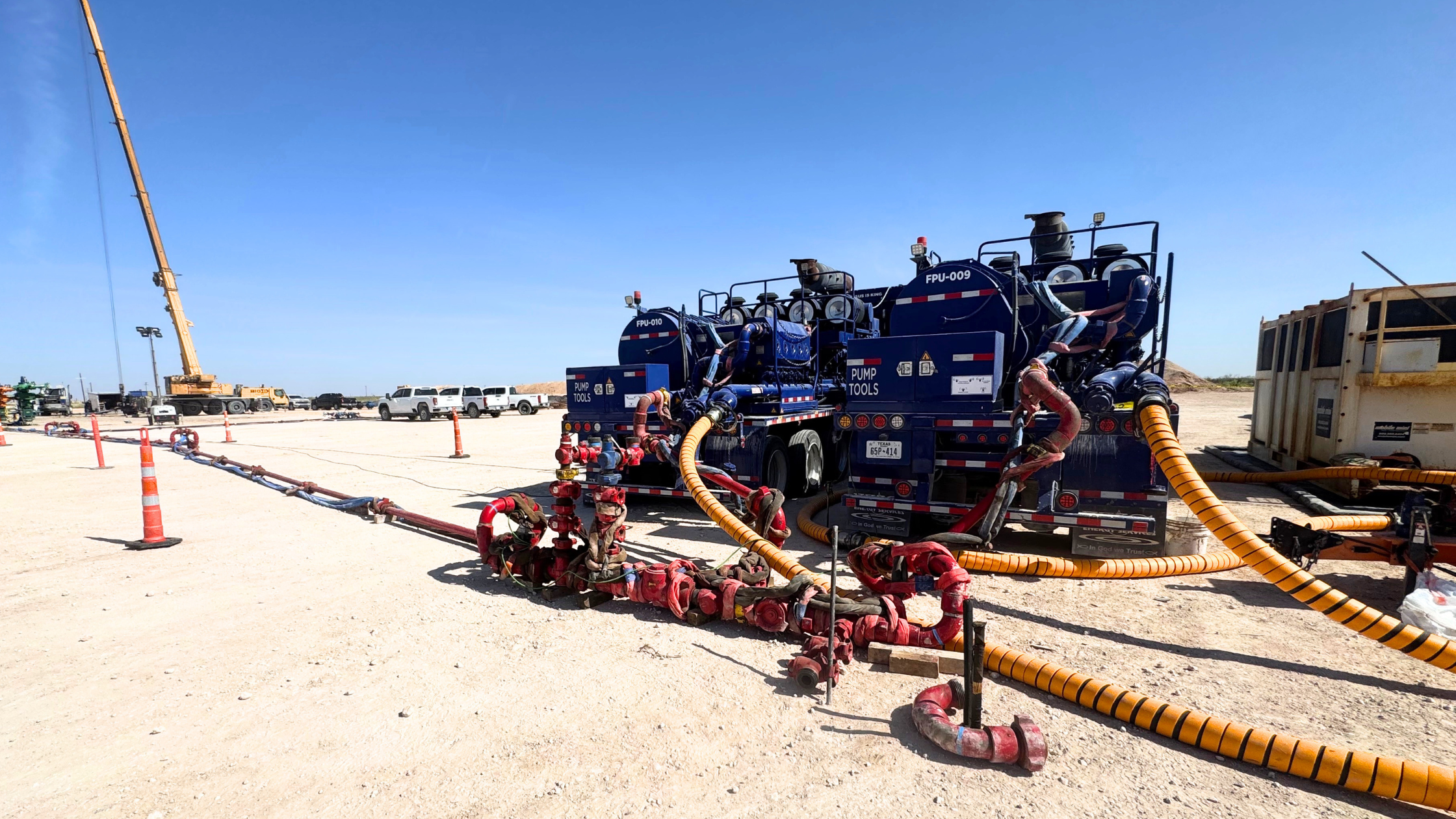

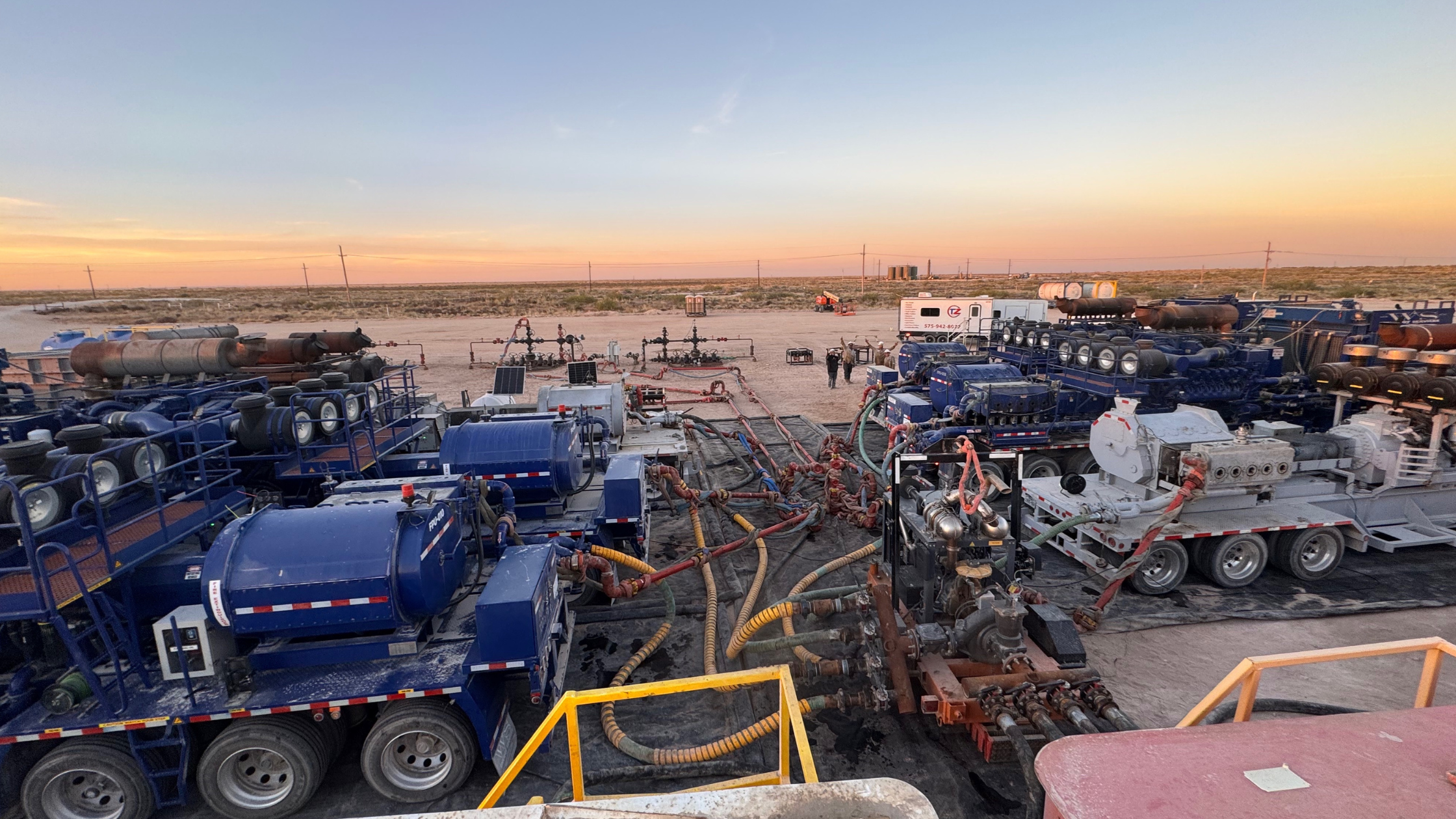

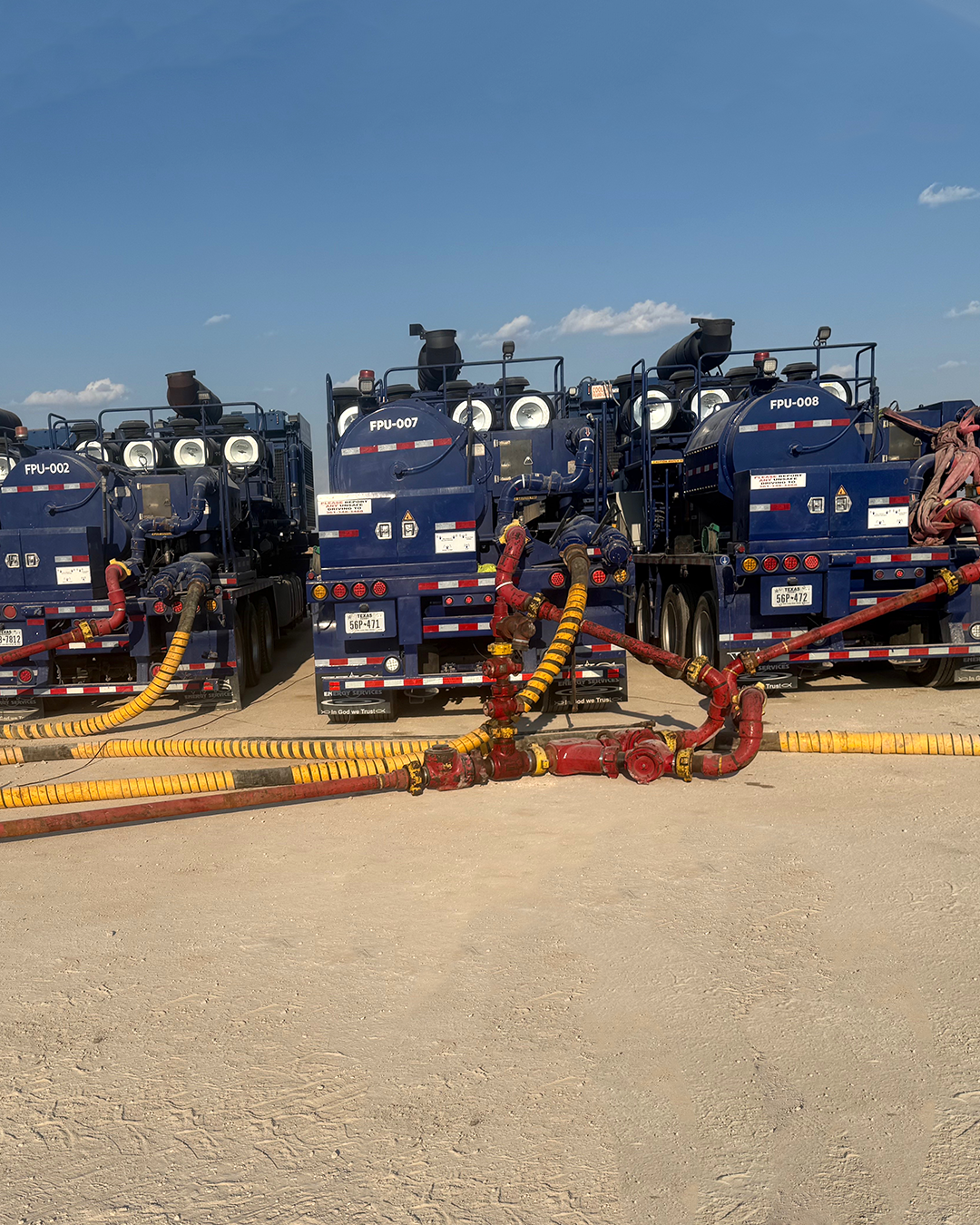

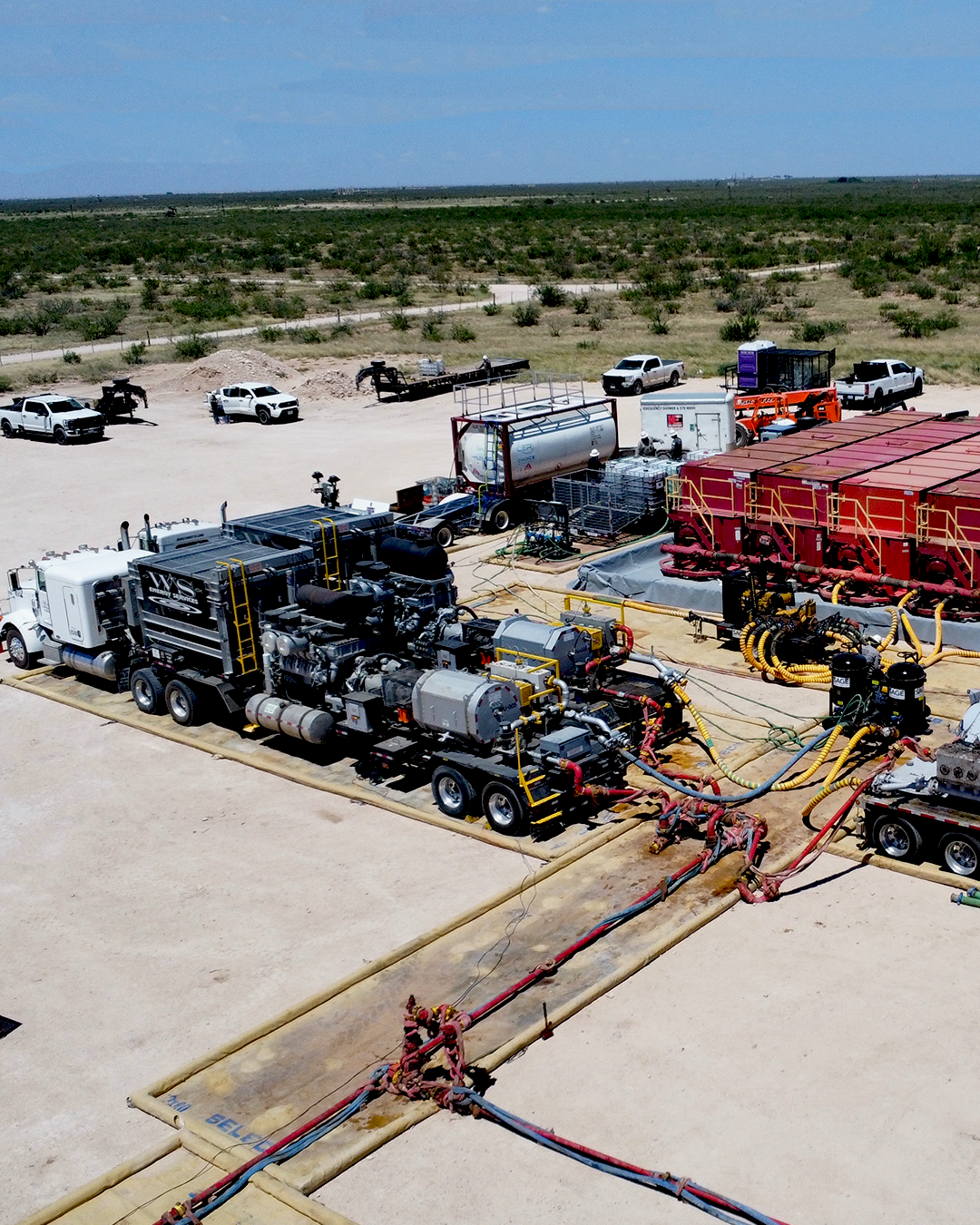

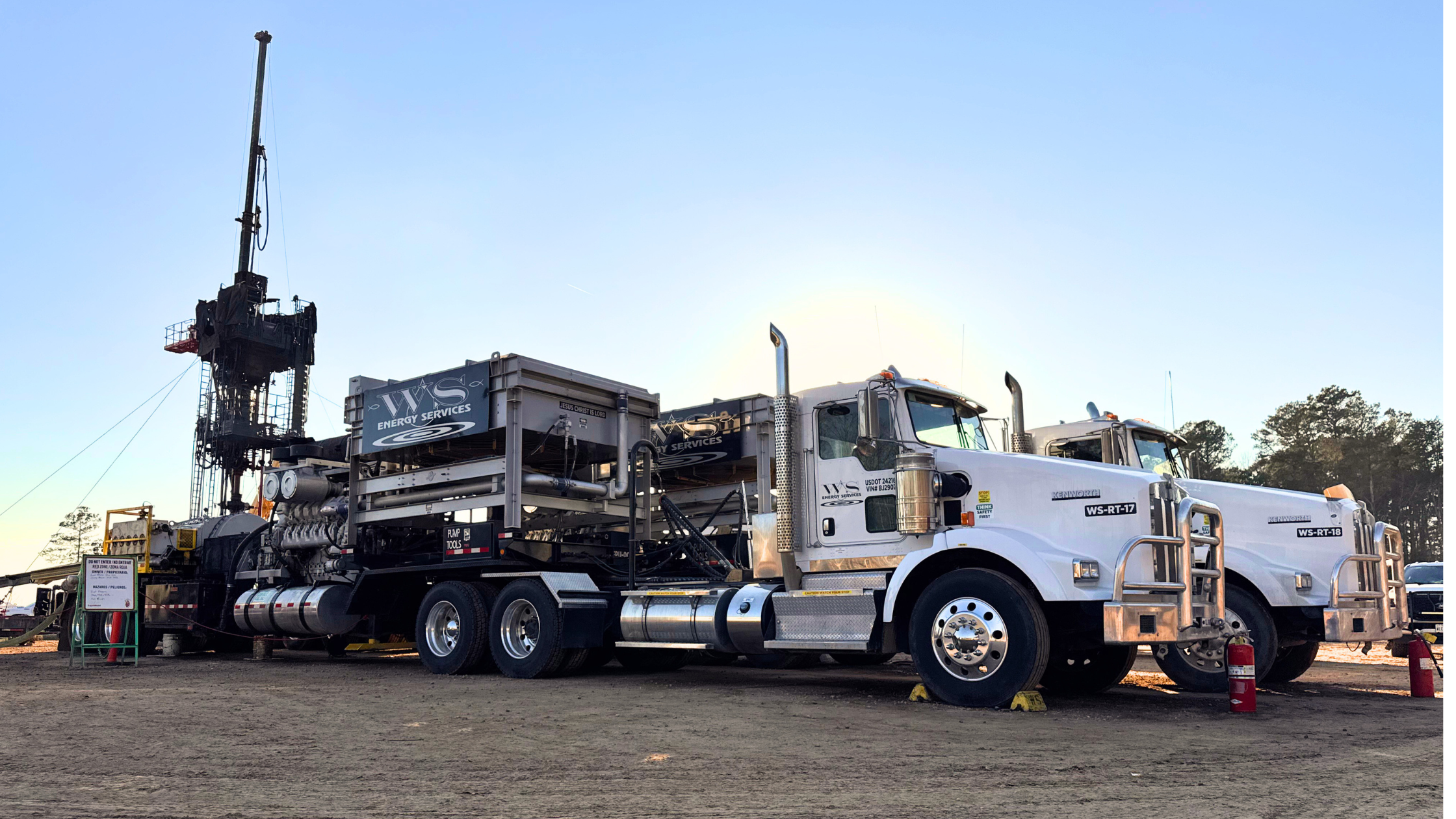

Pump Down Services

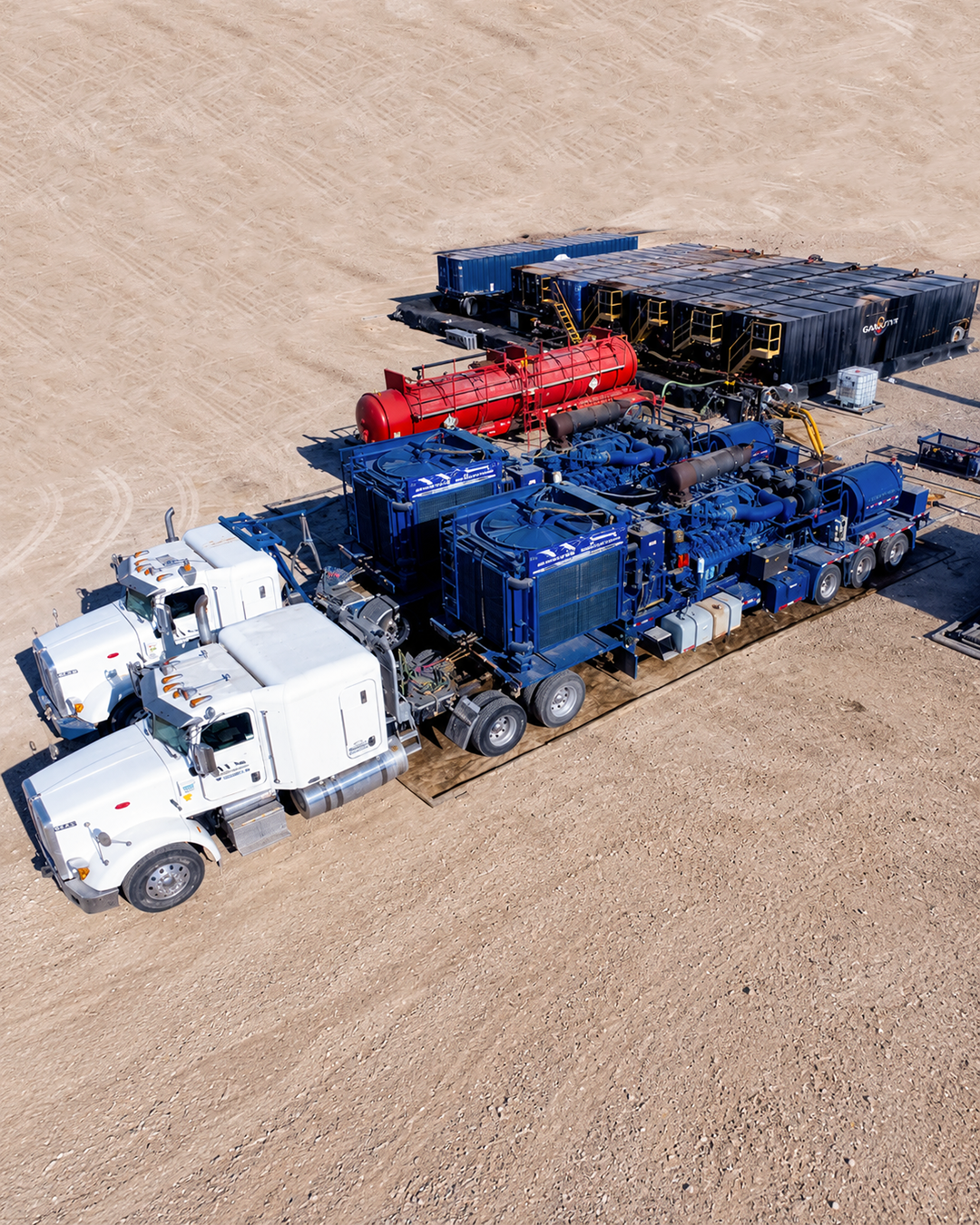

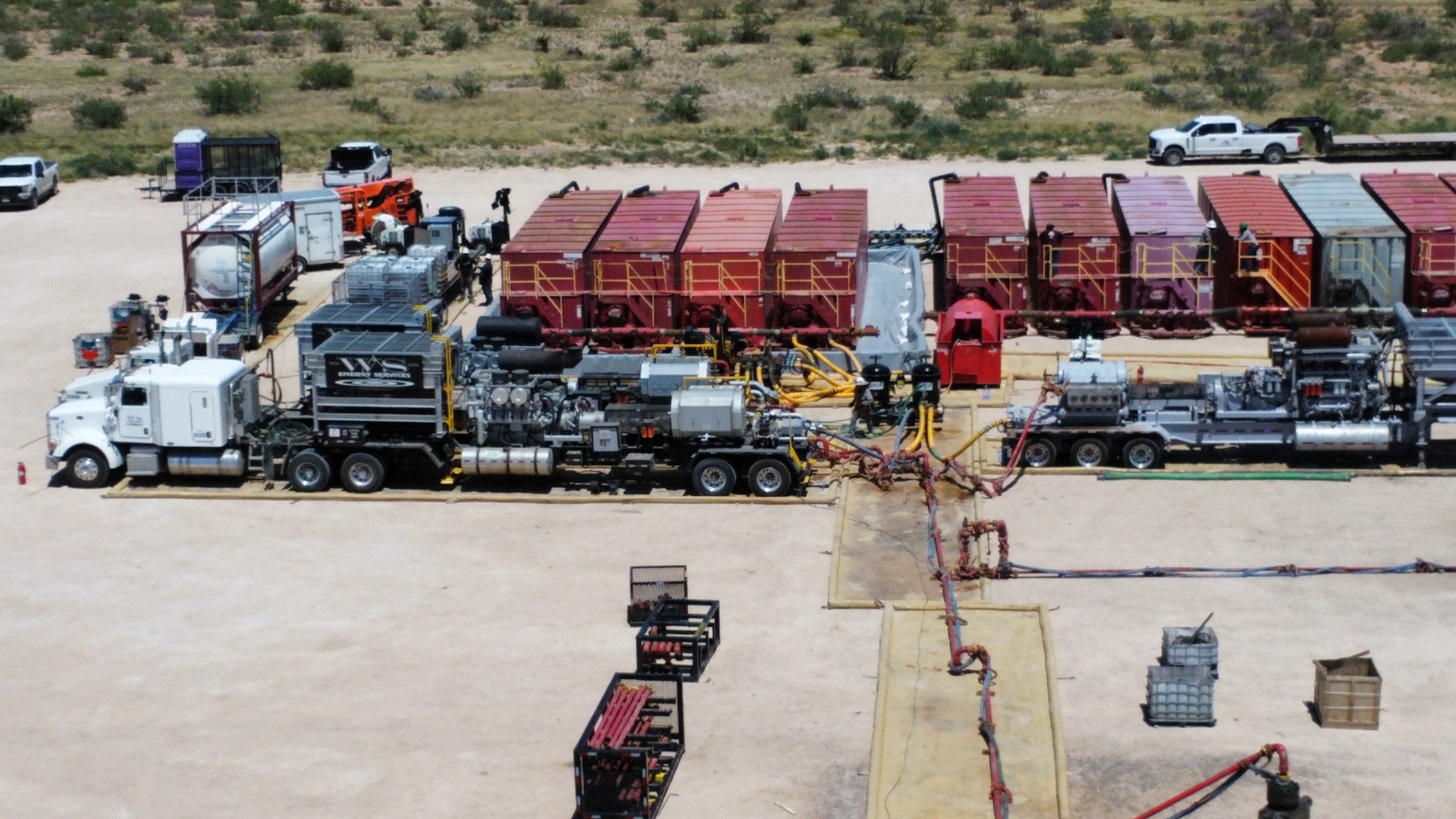

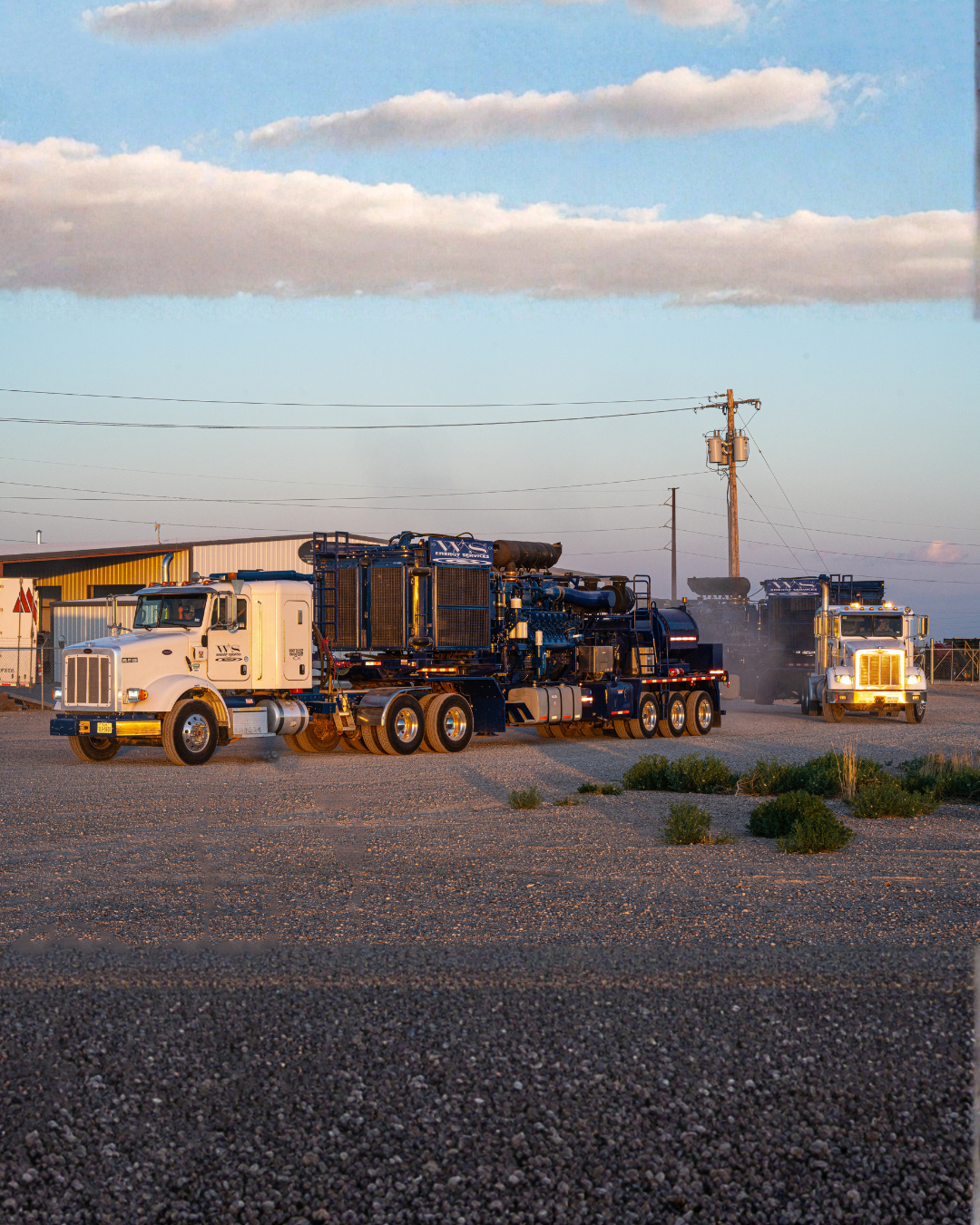

Our Pump Down fleet is engineered to support today’s demanding completion operations with safe, efficient, and dependable performance. Capable of pump rates from 1.6 to 40 BPM at pressures up to 14,000 PSI, our fleets are ideally suited for frac assist, drillouts, toe preps, acid stimulation, and other well intervention applications.

Each fleet is equipped with 2,500 HP quintuplex pumps, a 1,000 HP double pump, data-integrated chemical additive systems, and hydraulic or remote bleed-off capabilities. Combined with real-time data acquisition and reporting, our experienced crews deliver the precision, reliability, and operational efficiency customers depend on in the field.

REmote Hydraulic
Bleed-OFF Systems

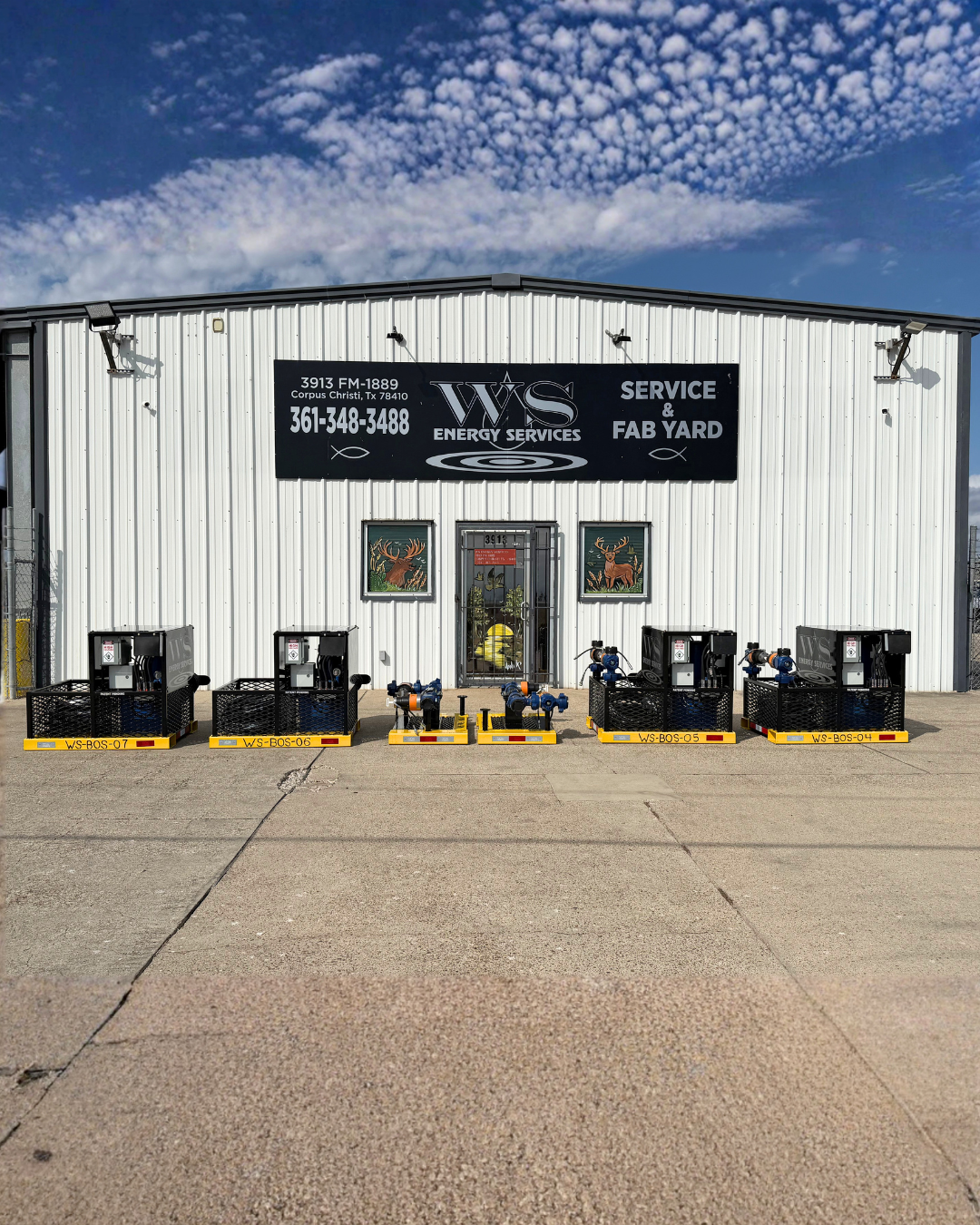

Our Remote Hydraulic Bleed-Off Systems are engineered to improve safety during high-pressure well servicing operations. By allowing operators to perform pressure bleed-off procedures from outside the red zone, our systems significantly reduce personnel exposure while maintaining safe, efficient operations.

Designed for workover, snubbing, and toe prep applications, the system provides dependable remote operation when pressure must be safely relieved or surge operations are required. With intuitive controls, clear valve position indicators, and built-in manual override capabilities, our equipment delivers confidence in even the most demanding field conditions.

Acidizing &
Well Stimulation

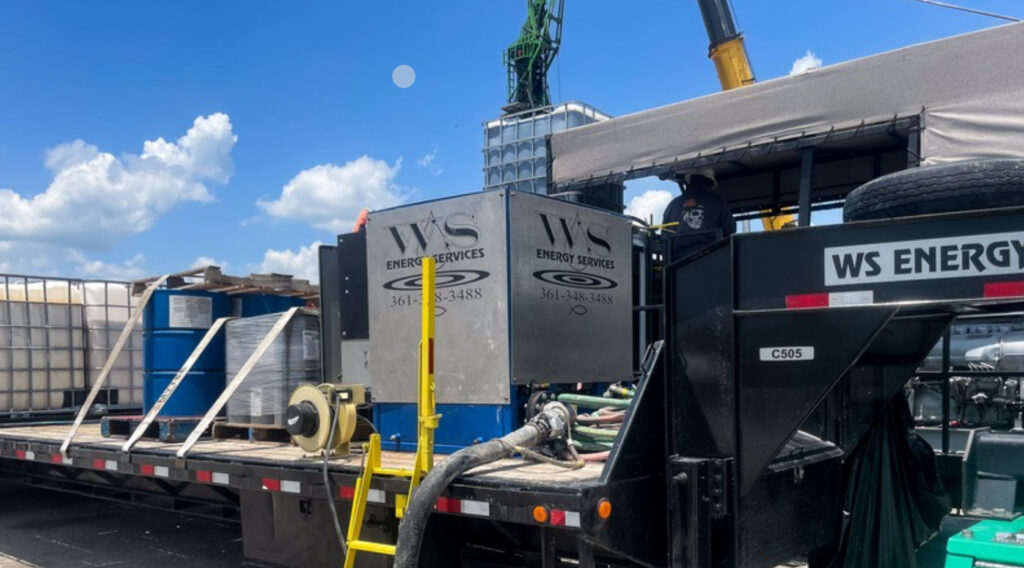

Our Acidizing & Well Stimulation services are designed to enhance reservoir performance, improve well productivity, and maximize production throughout the life of the well. Our comprehensive service package includes Chem-Add trailers (C-10s), data collection and reporting, and customized production stimulation plans. Our team reliably executes routine well stimulation treatments, surfactant flushes, and enhanced oil recovery (EOR) operations.

By combining precise chemical handling, dependable equipment, and efficient field execution, we help customers optimize well performance while minimizing downtime. Every project is backed by our commitment to safety, operational excellence, and responsive customer service, ensuring each job is completed with accuracy and confidence.
